Case Study: Preventing Catastrophic Failure at a Manufacturing Substation

FACILITY BACKGROUND

• Location: Main Substation at a large woodworking facility
• Total Insurable Value (TIV): $525 million
• Equipment: High-Voltage 115-kV Switch/Bushing



The Challenge

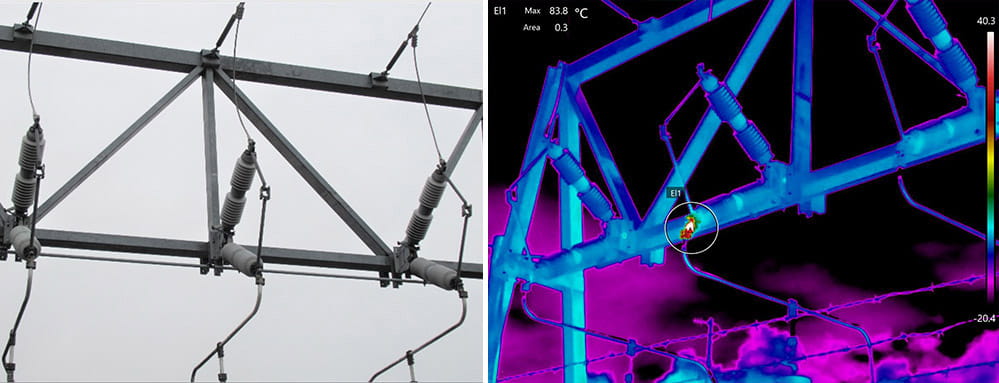

The substation was a critical component of the facility’s operations, responsible for regulating and distributing electrical power. Environmental conditions, including a coastal location with salt-laden air, compounded the risks to the electrical system. A routine infrared thermography inspection identified an alarming anomaly:

• Fault Type: B-phase load side lug connection
• Temperature Rise: +85.5°C above normal
• Severity: Critical (4-star rating)

Impact Assessment

If undetected, this fault could have led to:

• Equipment failure, triggering a complete substation outage.

• Estimated property damage exceeding $1 million.

• Business interruption potentially lasting between one to four months.

Solution

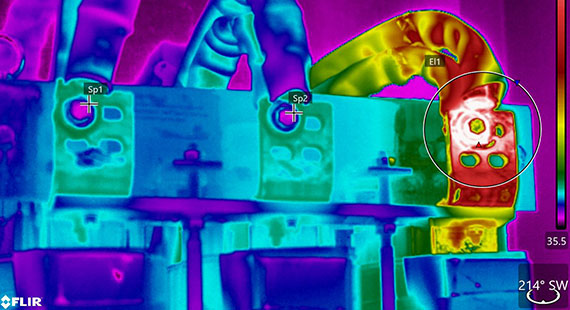

Infrared thermography, a non-destructive testing technique, was used to detect abnormal heat signatures in the substation equipment. After identifying the fault, immediate corrective actions were implemented:

• Proper cleaning maintenance.
• Utilization of specialized insulation, larger conductors etc.

Results

• Fault mitigated without any unplanned downtime.
• Significant cost savings by avoiding catastrophic equipment failure.
• Demonstrated the value of predictive maintenance to insurers and stakeholders.



Key Takeaways

1. Proactive Risk Management: Routine infrared thermography inspections are essential for identifying and addressing critical anomalies.

2. Environmental Awareness: Facilities in challenging environments, such as coastal areas, face unique risks that require tailored maintenance strategies.

3. ROI of Infrared Thermography: A relatively small investment in infrared thermography services resulted in cost avoidance exceeding $1 million.
